CCBG-01: Crowd control barrier gate
Crowd control barrier gate also called barricade gate, often used to match with Canada style temporary welded fence, which designed with a width smaller than the opening to allow for gate hardware install. It provide a pedestrian and vehicle access way for your pre-defined area, or prevent unauthorized intrusions into your open-air material storage.
Our barricade gate with welded pipe structure are all implement the same strict testing and quality control process as our crowd control barriers, fence feet and clamps.
System Components
Detailed specifications
| Material | Steel pipe | |||||
| Gate length | 4' | 6' | 8' | 10' | 12' | |
| Arch width | 4' 7" | 6' 7" | 8' 7" | 10' 7" | 12' 7" | |
| Gate height | 45", 48". | |||||
| Arch height | 10' | |||||
| Frame | 14 gauge | |||||
| Upright pipe | 5/8" O.D. × 16 gauge thickness | |||||
| Upright spacing | 4" | |||||
| Type | Barricade gate, gate & arch, walkthrough barricade gate | |||||
| Feet | Flat or fixed | |||||
| Gate wheel specification | ||||||
|---|---|---|---|---|---|---|
| Material | Steel and non-pollution rubber. | |||||
| Zinc thickness | 42 microns. | |||||
| Color | Red, white, etc. | |||||
| Surface treatment |
Hot dipped galvanized. Pre-galvanized. |
|||||
Crowd Control Barrier panels
Gate panels are constructed of frames, infill uprights and interlocking system. The outer frame and infill uprights are constructed of steel pipes.
- Steel pipe material for high strength and impact resistance.
- Hand welding for optimum strength.
- Hot dipped galvanised or powder coated for durability & longevity.
- Easy interlocking system for fast installation and sturdy.
- Withstand harshest environments.
- There are three styles of crowd control barrier for your choice.
CCBG-02: Barricade gate for crowd control barrier

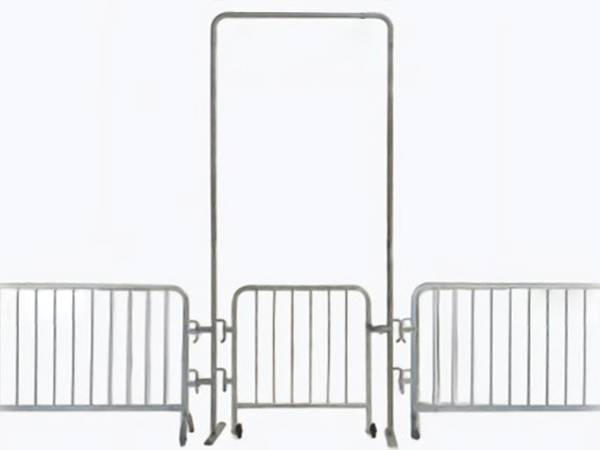

CCBG-03: Barricade gate & arch

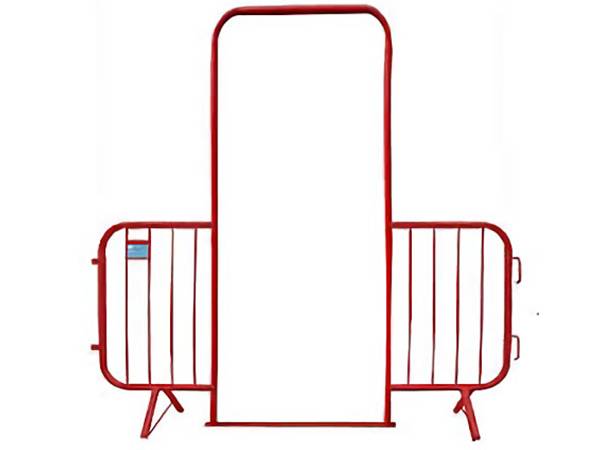

CCBG-04: Walk-through crowd control barrier gate
Gate feet
Flat and bridge feet often used to match the walkthrough barricade gate. We also offer wheels transforms a panel into a swing gate. Installed with wheels, the gates will close or open smoothly over even the roughest terrain.
- Considerate flat design for reducing tripping hazards.
- Removable feet for easy stacking and storing.
- Wheel design for smooth and easy operation.
- Fixed or removable feet options.

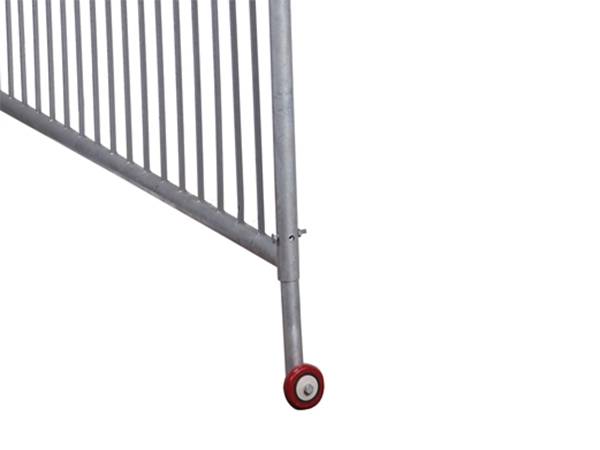

CCBG-05: Removable wheel feet for barricade gate

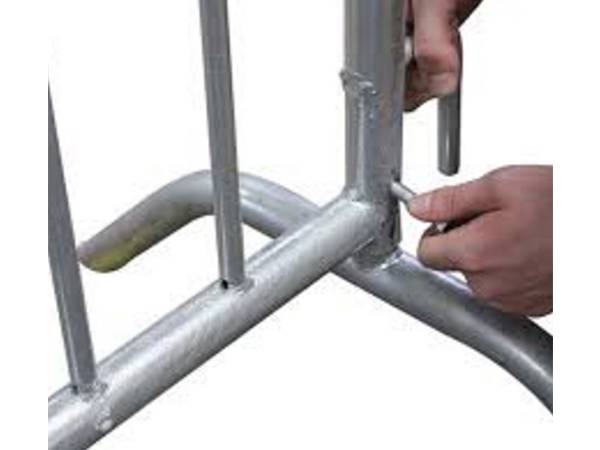

CCBG-06: Removable bridge feet for barricade gate
CCBG-07: Removable flat feet for barricade gate
Application

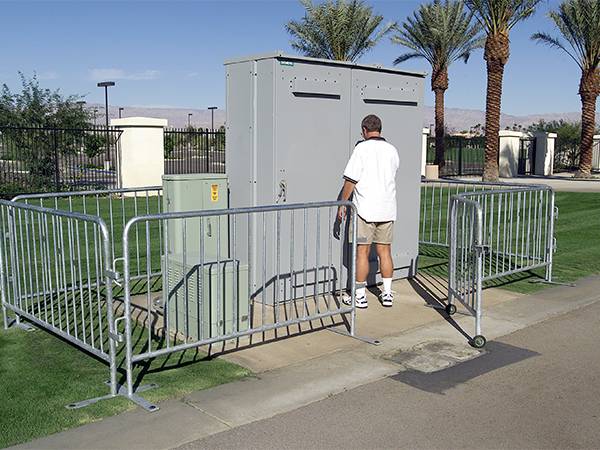

CCBG-08: Swing barricade gate for power station
CCBG-09: Walk through barricade gate for courtyard
CCBG-10: Barricade gate for construction site
CCBG-11: Pedestrian Walk through gate for worksite
