Our temporary pool fence/fencing are deigned according to the Australian Standard A.S. 1926.1-2012 – Swimming Pool Safety.
Temporary pool fence are installed around the swimming pools or spas for some security purpose.
- Enclose dangerous areas and prevent unauthorized access and protect workers' security in the swimming pool construction site.
- Prevent kids or pets from accessing or falling off when filled with waters in the commercial or private swimming pool or spas.
- Meet for pool safety regulations.

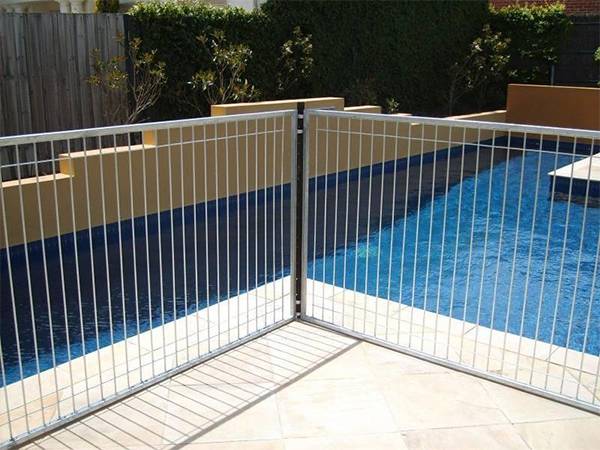

TPFR-01: Temporary pool fencing are enclosed the swimming pool to protect kids and pets.
TPFR-02: Temporary pool fencing are used to enclose dangerous area and protect workers' safe.
Detailed specifications
- Material: tubular galvanized steel.
- Surface treatment: hot dipped galvanised or powder coating.
- Infill bar spacing: 70 mm or 65 mm.
- Gaps from bottom frame to the ground: 100 mm Max.
- Connection type: star pickets or steel clamp.
TPFR-03: Star picket connection.

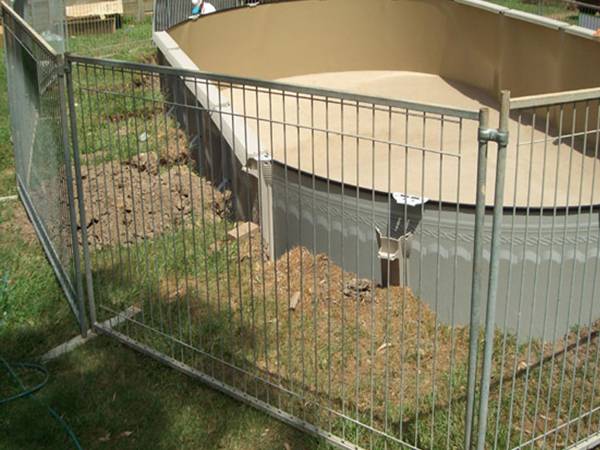

TPFR-04: Steel clamp connection.
| Type 1 | Type 2 | |
|---|---|---|
| Panel Height | 1250 mm | 1050 mm |
| Panel Length | 2000 mm | 2000 mm |
| Frame Diameter |
25 mm square tube 32 mm O.D. |
25 mm square tube 32 mm O.D. |
| Infill Bars |
8 mm × 5 mm wire 7 mm steel rod |
8 mm × 5 mm wire 7 mm steel rod |
| Infill Bar Spacing | 70 mm or 65 mm | 70 mm or 65 mm |
| Gap From Frame Bottom to Ground | Max. 100 mm | Max. 100 mm |
System components
- Temporary pool fencing panel
- Steel flat feet
- Star pickets
- Self-closing temporary pool gate

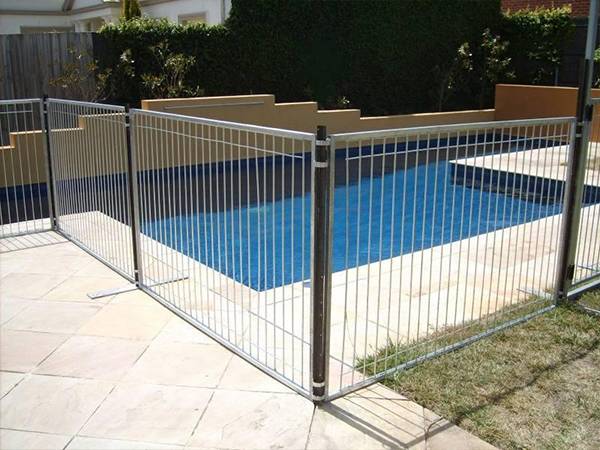

TPFR-05: Temporary pool fencing panel

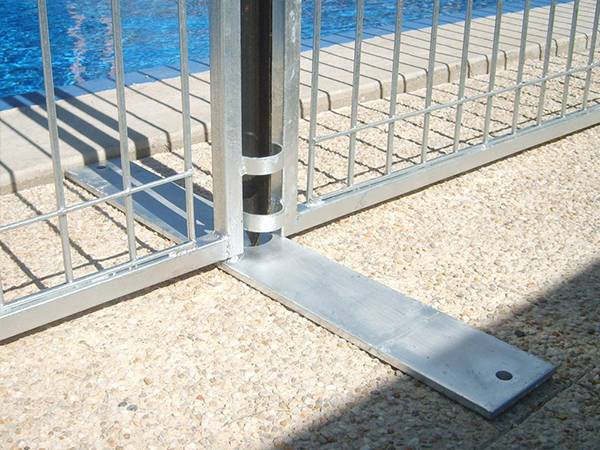

TPFR-06: Steel flat feet

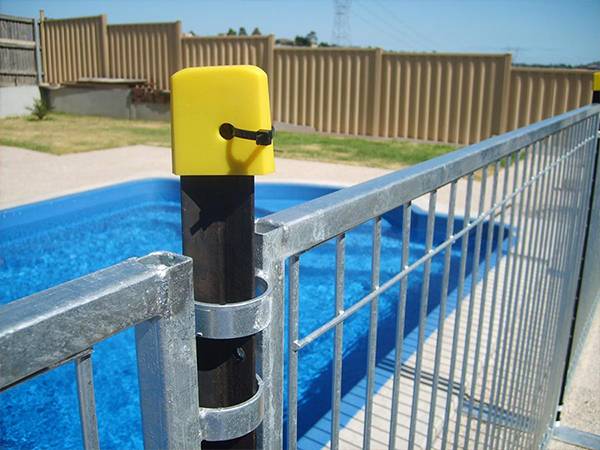

TPFR-07: Star pickets
TPFR-08: Self-closing gate
Temporary pool fencing panels
This type temporary fencing panels are constructed of rod infills and square or round frame pipes, which is different from temporary fencing with steel pipe infills.
- Comply with council pool fencing regulations and Australian standards.
- Supply temporary protection and enclosure while waiting permanent fencing.
- Excellent children and pet protection.
- No more than 100 mm consist gap from bottom frame to the ground.
- The surface treatment can be hot dipped galvanized or powder coating.
- Steel plate supplies firm foundation even used as permanent fencing.
- Bolt-down design can supply further stability for pool fencing system.
- Star picket connection between fence panels increase its stability and durability.
- Smooth surface without any no burrs and sharp edges for safe installation and use.
Steel flat feet
- Flat design prevent trapping hazards.
- Bolt-down design to withstand heavy wind and improve its stability.
- Hot dipped galvanised finish for most durable and longest lifespan.
Star pickets
Star pickets are important accessory in temporary pool fencing. They connect two neighbour pool fencing panels and increase the stability and durability of temporary pool fencing.
The star pickets are available:
- Heavy duty hot dipped galvanised.
- Black tar.
Self-closing temporary pool gate
- Secure the pool area until a permanent fence is built.
- Latch opening gate allows for easy access.
- Unique design to ensure the safety of small children and prevent children from climbing up.
- Further heighten safety and security of the pool construction site.

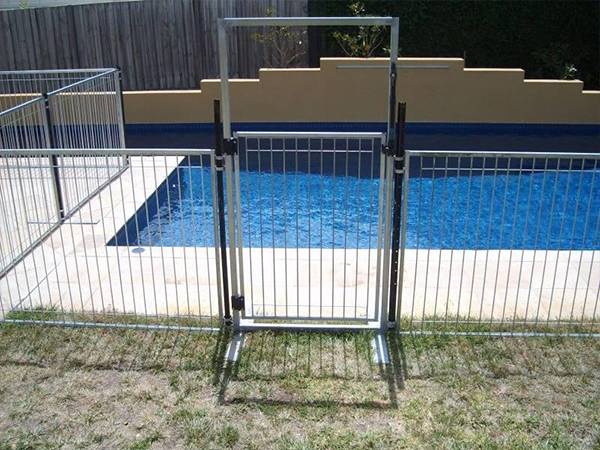

TPFR-09: Self-closing temporary pool fencing gate.
Detailed specifications
- Material: galvanized steel tubular.
- Panel size: 2100 mm (H) × 995 mm.
- Frame: 25 mm square tube or 32 mm O.D.
- Infils: 8 mm × 5 mm wire or 7 mm steel rod.
- Infill rod height: 1345 mm.
- Infill bar spacing: 60 mm, 70 mm, 100 mm (maximum).
- Feet: metal or plastic.
- Distance from bottom panel edge to the ground: max. 100 mm.
